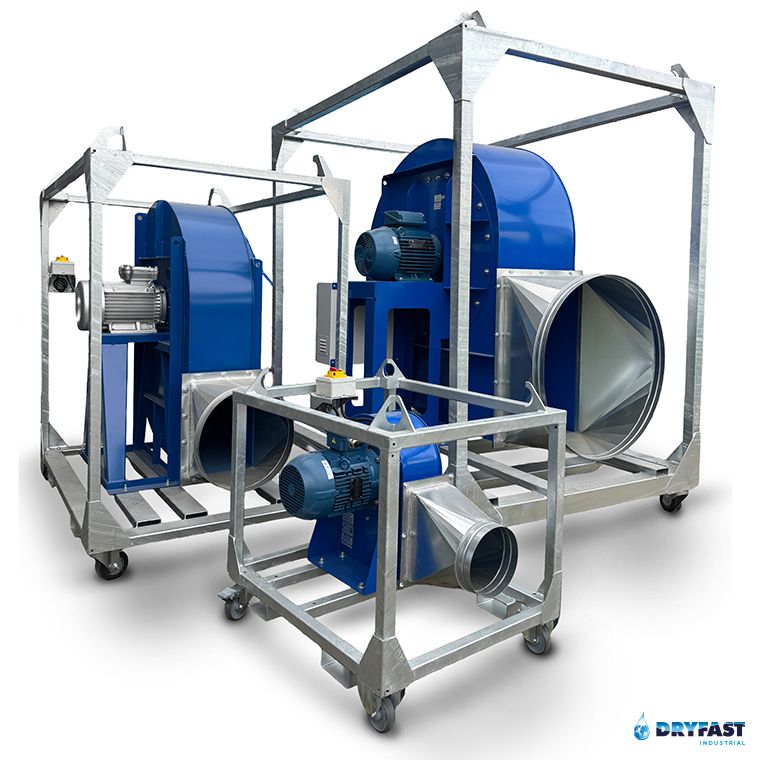

Radial fan DRFC100
- Series of powerful radial fans
- Ideally suited for extracting harmful vapors and gases and/or ventilating enclosed spaces
- Can be implemented with external frequency converter
Product specifications
| Specifications |
DRFC100 |
| Article code |
DRFC100 |
| Airflow |
3.950 m³/h |
| Air pressure |
2.000 Pa |
| Air temperature |
60 °C |
| Connection voltage |
400 V / 50 Hz |
| Power consumption |
2.2 kW |
| Recommended fuse |
16 A |
| Plug |
400 V / 16 A 5-pole |
| Sound level |
@ 3 mtr. 66 dB(A) |
| Fan diameter |
intake/exhaust 300 mm |
| Dimensions L x W x H |
1000 x 1150 x 930 mm |
| IP class |
IP55 |
| Mobility |
mobile / portable |
