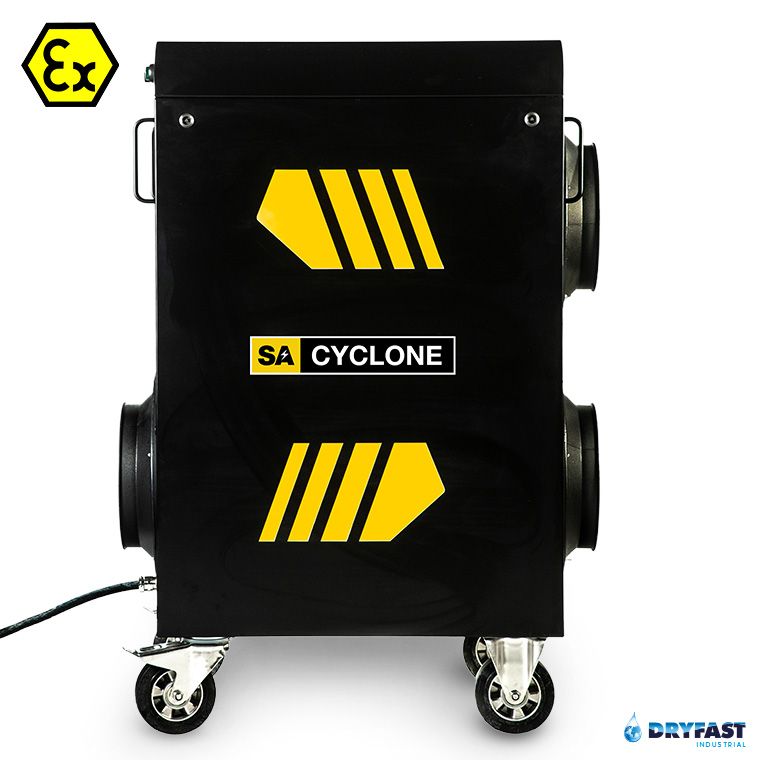

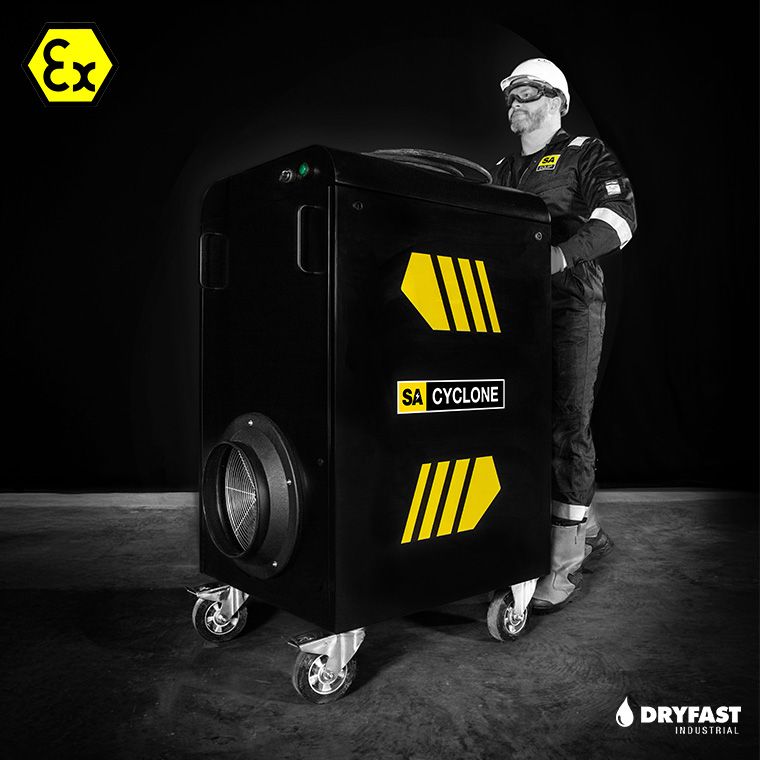

Dehumidifier SADH11440

In environments where moisture poses a direct risk to safety, quality, and operational continuity, the SADH11440 dehumidifier offers an effective solution. This ATEX-certified mobile dehumidifier is designed for use in harsh industrial and potentially explosive environments and combines high capacity with maximum safety.

The dehumidifier is certified according to ATEX, IECEx, and UKCA and can be used in:

  • Gas zones 1 and 2
  • Dust zones 21 and 22
Key features
  • With a dehumidification capacity of up to 200 liters per day, the unit is suitable for intensive applications where fast and controlled drying is required.
  • Compact, mobile, and ready to use: While many industrial dehumidifiers are large and difficult to install, the SA Cyclone EX stands out thanks to its exceptionally compact and lightweight design. A single person can easily move, position, and connect the unit.
  • Thanks to the plug-and-play principle, no complex installation is required. This makes the dehumidifier particularly suitable for temporary use, maintenance work, or critical situations where quick action is required.
Applications
  • Accelerating drying processes prior to painting or coating work
  • Reducing moisture levels in production and installation environments
  • Preventing corrosion and condensation on machinery and components
  • Explosion-proof dehumidification in industrial environments
Shape Shape

Product specifications

Specifications SADH11440
Article code SADH11440
ATEX code Ex db eb ib mb pb IIB T4 Gb
Ex db ib mb tb pb IIIC T135°C Db
Capacity @ 19 °C / 80% R.H. 200 l / 24 h
Refrigerant R134a
Airflow 50Hz @ 690 m³/h
Max. ambient temperature -40°C to 50 °C
Connection voltage 400 - 440 V / 50 Hz
Recommended fuse 32 A
Hose connection ø 300 mm
IP class IP65
Sound level 83 dB(A)
Weight 200 kg
Dimensions L x W x H 800 x 700 x 1290 mm
Mobility Mobile
