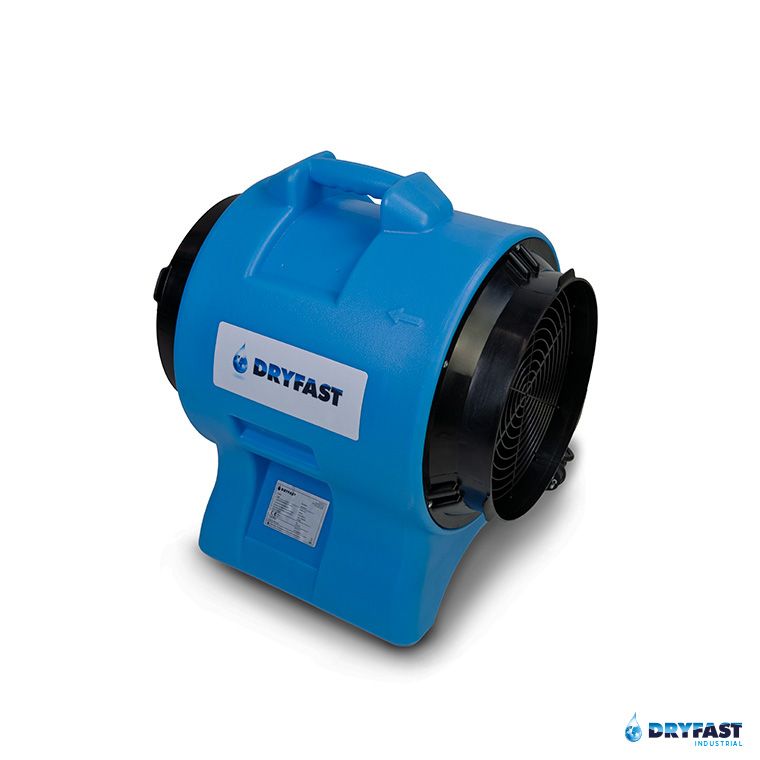

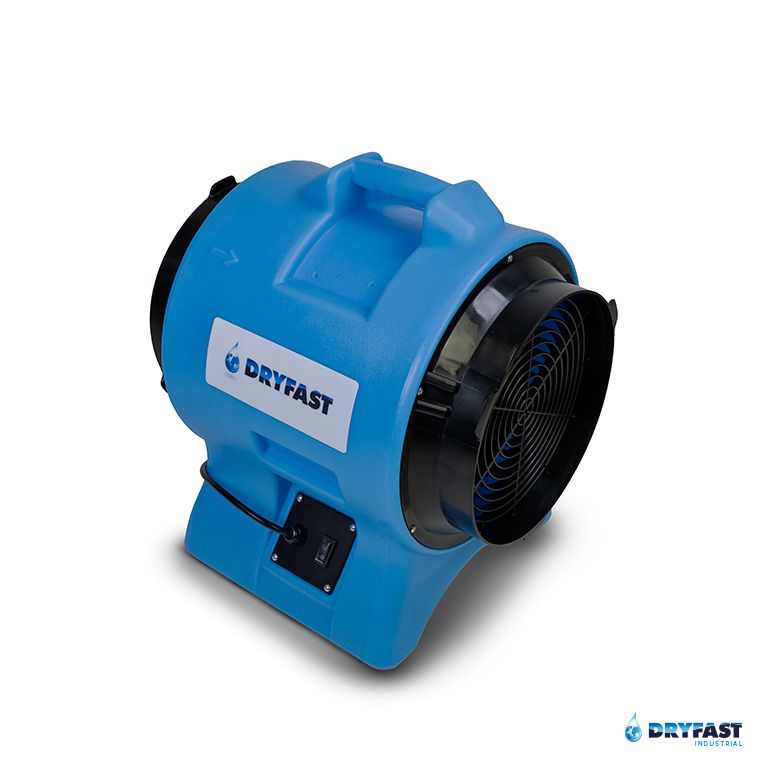

Axial Fan DAF3000-I
The DAF3000-I will be available starting in mid-June
The DAF3000-I axial fan is a powerful, portable, and stackable solution for the efficient removal of harmful gases and dust in demanding environments such as the maritime, industrial, and construction sectors.
Key Features
- With an air flow rate of 3000 m³/h and a maximum air pressure of 295 Pa, the DAF3000-I is ideal for applications with hose lengths of up to 20 meters (ø 300 mm).
- Supply voltage: 110 V / 60 Hz
- The robust polypropylene (PP) housing is designed to withstand intensive use and harsh conditions.
- A specially developed inner sleeve optimizes the distance between the fan blade and the housing, resulting in higher airflow without additional energy consumption.
Applications
The DAF3000-I is suitable for a wide range of applications, such as dust extraction, the removal of harmful (welding) fumes, ventilation of construction sites, and as a support for certain industrial cleaning tasks.
Product specifications
| Specifications | DAF3000-I | 110V/60Hz |
|---|---|
| Article code | DAF3000-I |
| Air consumption | 3000 |
| Air pressure max. | 295 Pa |
| Connection voltage | 110V / 60Hz |
| Power consumption | 0.60 kW |
| Recommended fuse | 16 A |
| Hose connection ø | 2 x 300 mm mm |
| Air temperature | 45 °C |
| Fan diameter | 300 mm |
| IP class | IP44 |
| Sound level | 75 dB(A) |
| Weight | 12.5 kg |
| Dimensions L x W x H | 380 x 475 x 520 mm |
| Mobility | Portable/stackable |
